Valve Position Monitor
LSB-3000 — Explosion-Proof Limit Switch Box
The LSB-3000 is our explosion-proof valve position monitor, designed for use on automated on-off valves in hazardous areas where the most stringent certification is required. With dual ATEX and IECEx Flameproof certification, IIC gas group coverage (suitable for hydrogen and acetylene atmospheres), and an optional 316 stainless steel housing, the LSB-3000 is specified into refineries, petrochemical plants, offshore platforms, LNG facilities, and any installation where reliability and proper hazardous-area certification cannot be compromised.
Features
- Dual ATEX & IECEx Flameproof certification (Ex d IIC T6 Gb)
- Class I Division 1, Groups B, C, D (NEC) — covers all standard process gases
- IP66 / IP67 weatherproof and dust-tight protection (NEMA Type 4, 4X)
- Aluminum die-cast or 316 stainless steel housing options
- Mechanical SPDT or DPDT switches, or hermetically sealed reed (TTL) for non-contact operation
- P&F NAMUR inductive proximity sensors (NJ2-V3, NBB series) available for intrinsically safe circuits
- Visual position indicator with high-contrast dome
- NAMUR VDI/VDE 3845 standard mounting — mounts on all major actuator brands
- EAC (Eurasian) and KCs (Korean) certifications standard for global projects
Options
- 4 x SPDT mechanical limit switch
- 4 x P&F proximity sensor
- 4 x Hermetically-sealed proximity sensor
- 4 – 20mA output position transmitter

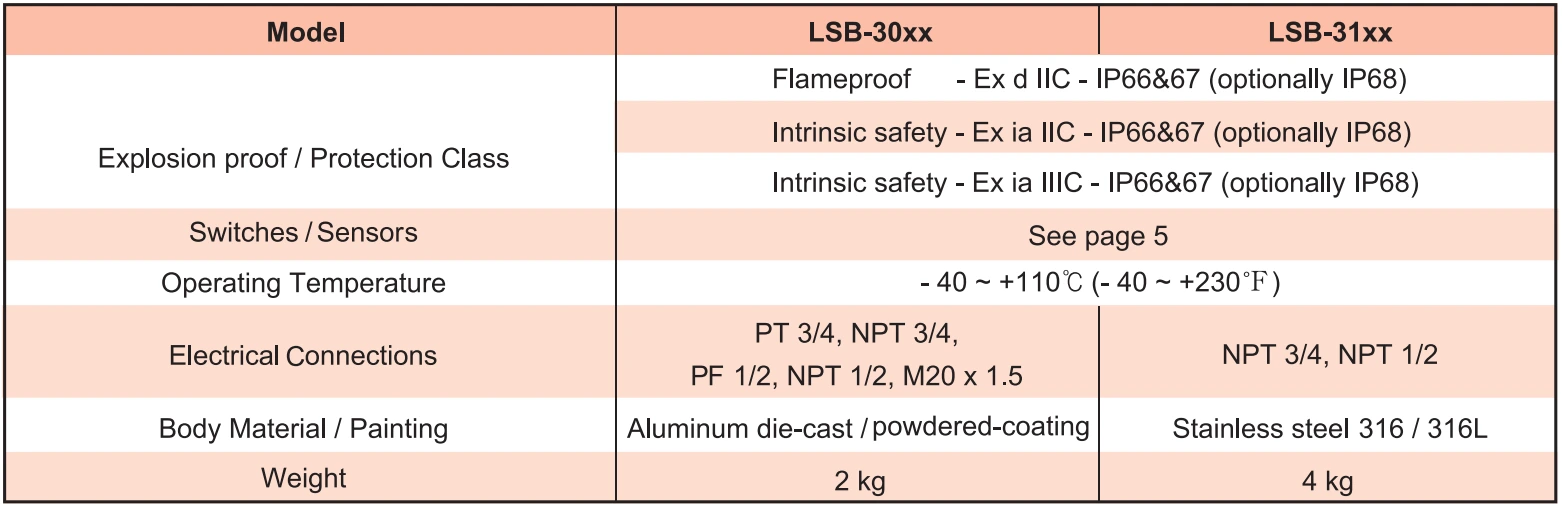

LSB-3000 Series

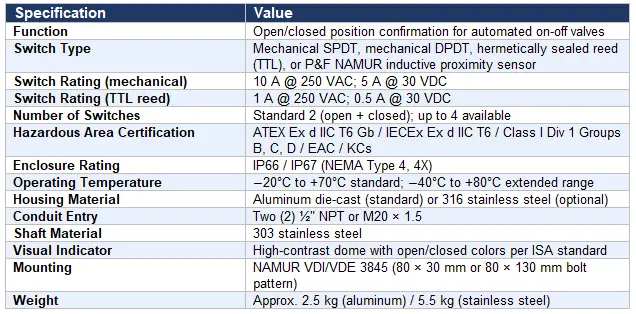

Specifications
Typical applications
- Emergency shutdown (ESD) valves in refining, petrochemical, and oil & gas service
- Blowdown and depressurization valves on pressurized vessels
- Offshore platform automated valves (with SS316 housing)
- LNG terminal and regasification automated valves
- Hydrogen processing and ammonia plants (IIC gas group requirement)
- Battery limit isolation valves in safety instrumented systems (SIS)
- Any Class I Division 1 / Zone 1 hazardous area requiring open/closed position feedback
Variants & options
- Housing: aluminum die-cast (standard) or 316 stainless steel
- Switches: mechanical SPDT, mechanical DPDT, TTL reed, P&F NJ2-V3 inductive NAMUR, P&F NBB series inductive NAMUR
- Conduit entry: ½” NPT (US standard) or M20 × 1.5 (international)
- Temperature: standard (−20°C to +70°C) or extended (−40°C to +80°C)
- Indicator dome: standard colors or custom per project specification
Downloads
Need help specifying the right
LSB-3000 configuration?
Our engineers can confirm switch selection, conduit entries, housing material, and bracket fitment for your specific actuator and service conditions — at no charge and with no obligation.
