AIR FILTER REGULATOR
FR-20 — Precision Air Filter Regulator (Aluminum or 316 Stainless Steel)
Introduction
The FR-20 is our precision air filter regulator — engineered for instrument-quality air supply to valve positioners, solenoid valves, and pneumatic actuators in process plant service. Available in aluminum die-cast for standard industrial environments or 316 stainless steel for offshore, marine, sour-gas, pharmaceutical, and aggressive chemical environments, the FR-20 combines a 5-micron filter element, precision pressure regulation, self-relief function, optional auto-drain, and a stainless steel pressure gauge in a compact, NAMUR-mountable package. The extended-temperature option supports outdoor installation from −40°C to +80°C.
Features
- Aluminum die-cast or 316 stainless steel housing — same form factor, same performance
- 5-micron filter element — removes water, oil, and particulates before they reach sensitive instruments
- Precision pressure regulation with self-relief function to prevent over-pressurization
- Stainless steel pressure gauge standard
- Manual or automatic float-type drain
- Extended temperature option: −40°C to +80°C for outdoor and arctic service
- Output pressure ranges: 0–4 bar (60 psi) or 0–8 bar (120 psi)
- Compact, lightweight design — NPT or PT (Rc) port options
Dimensions:

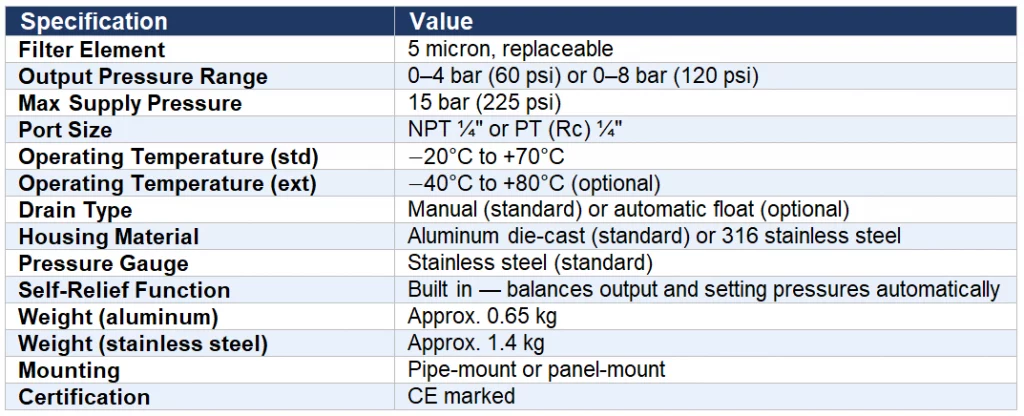

Specifications
When to specify stainless steel
The 316 stainless steel housing is required in any environment where aluminum will corrode or degrade prematurely. Specify SS316 for:
- Offshore platforms and marine vessels (continuous salt-spray exposure)
- Coastal facilities (salt air corrosion)
- Sour-gas service (H₂S exposure requiring NACE MR0175 compliance)
- Chlorine, hydrochloric acid, or other halogen atmospheres
- Pharmaceutical and biotech facilities (cleanability and washdown requirements)
- Food and beverage production (washdown with caustic cleaning chemicals)
- Pulp and paper bleach plants
- Any installation that will be cleaned with aggressive chemicals
Typical applications
- Air supply to electro-pneumatic positioners (EPR, EPL, ASD series)
- Air supply to solenoid valves on automated on-off valves
- Air supply to NAMUR-mounted accessories on rotary pneumatic actuators
- Point-of-use filtration for pneumatic instrumentation throughout the plant
- Offshore and marine applications (SS316 version)
- Pharmaceutical clean utilities and process areas (SS316 version)
Variants & options
- Housing: aluminum die-cast or 316 stainless steel
- Output range: 0–4 bar (60 psi) or 0–8 bar (120 psi)
- Port size: NPT ¼” or PT (Rc) ¼”
- Temperature: standard (−20°C to +70°C) or extended (−40°C to +80°C)
- Drain: manual or auto-float
- Mounting: pipe-mount or panel-mount kit (optional)
Downloads
Need an aluminum FR-20 for general service or a stainless FR-20 for offshore?
Both ship from our US stocking locations for fast delivery. Contact us with your application and we’ll confirm the right configuration.
