Archer Go-to Gauges
A1377 Medium Duty A1922 Severe Service
Archer offers a full line of premium quality pressure gauges for medium duty and severe services, available from stock.
Introduction
A1377 Series: Medium Duty, 304 Body, Brass Connections, Crimped Bezel, Copper Alloy Bourdon Tube
A1922 Series: Severe Service, Laser Welded 316 Body, 316 Connections, Bayonet Ring, 316 Bourdon Tube
Features
- Tempered Glass Face.
- Connection Center Back Mounted unless specified otherwise.
- For measuring points with high dynamic pressure loads or vibration.
- For gaseous and liquid media that are not highly viscous or crystallizing.
- Liquid-filled case for applications with high dynamic pressure loads or vibration.
- Process industry: Chemical/petro-chemical, power stations, mining, on- and offshore,
environmental technology, machine building and general plant construction. - Excellent load-cycle stability and shock resistance.
- All stainless steel construction (A1922 Series.
- Wide range of configurations available.
How to order:
|
A
|
Series
|
-
|
SIze
|
Connection
|
Range
|
Filled
|
-
|
Option
|
|---|
|
Description
|
Code
|
Description
|
Code
|
|
|---|---|---|---|---|
|
Series 1377:
|
304 Body, Brass Connections,
Crimped Bezel,
Copper Alloy Bourdon Tube |
|
E
|
1/8" BSPT
|
|
|
|
|
F
|
1/4" BSPT
|
|
|
|
|
G
|
3/8" BSPT
|
|
|
|
|
H
|
1/2" BSPT
|
|
Series 1922:
|
316 Body, 316 Connections,
Bayonet Ring,
316 Bourdon Tube |
Pressure Ranges 1377
|
16
|
0-160 PSIG
|
|
Sizes 1377
|
15 1.5”
|
Pressure Ranges 1922
|
16
|
0-160 PSIG
|
|
|
20 2”
|
|
30
|
0-300 PSIG
|
|
|
25 2.5”
|
|
150
|
0-1500 PSIG
|
|
|
|
|
200
|
0-2000 PSIG
|
|
Sizes 1922
|
25 2.5”
|
|
300
|
0-3000 PSIG
|
|
|
40 4”
|
|
500
|
0-5000 PSIG
|
|
|
60 6"
|
|
|
|
|
|
|
|||
|
|
||||
|
|
|
|||
|
|
|
|
|
|
|
|

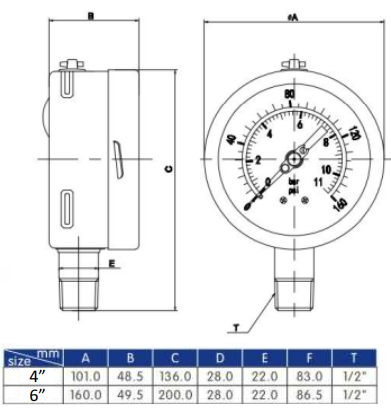

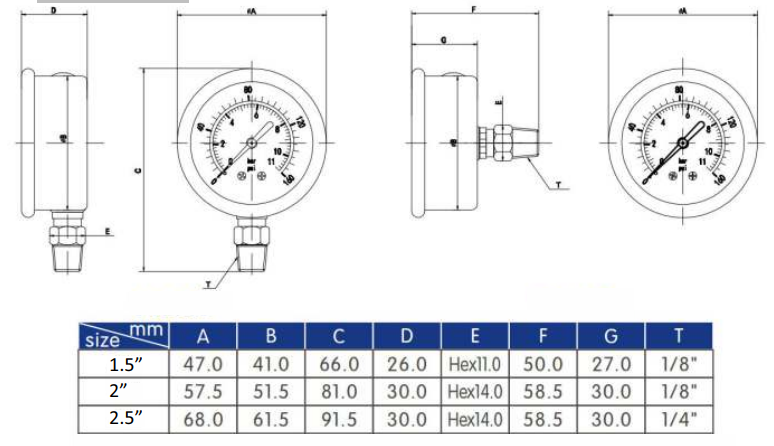

Dimension in mm
Standard version
Process connecon: Copper alloy lower mount (LM) or back mount (BM)
Pressure element(bourdon tube): Copper alloy C-type or helical type
Movement: Copper alloy
Dial: Aluminum, dial scale can be customized
Pointer: Aluminum, black or white
Window: Poly-carbonate
Case: polished or mae stainless steel
O-ring seal between case and connecon.
Bezel ring: Crimp ring or bayonet bezel
Filling liquid: Glycerine or silicone
Accuracy class:
1.5”: 2.5
2” : 1.6
2.5”: 1.6

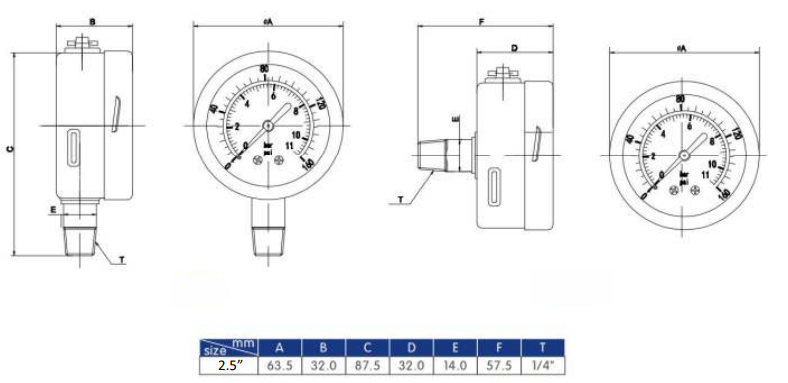

Dimension in mm
Standard version
Process connecon: stainless steel lower mount (LM) or back mount (BM)
Thread: As requests
Pressure element(bourdon tube): stainless steel C-type or helical type
Movement: stainless steel
Dial: Aluminum, dial scale can be customized
Pointer: Aluminum, black or white
Window: Safety glass or tempera glass
Case: mae or polished stainless steel
Bezel ring: bayonet bezel
Filling liquid: Glycerine or silicone
TIG welding or laser welding
Accuracy class:
2.5”: 1.6
4” : 1.0
6”: 1.0
